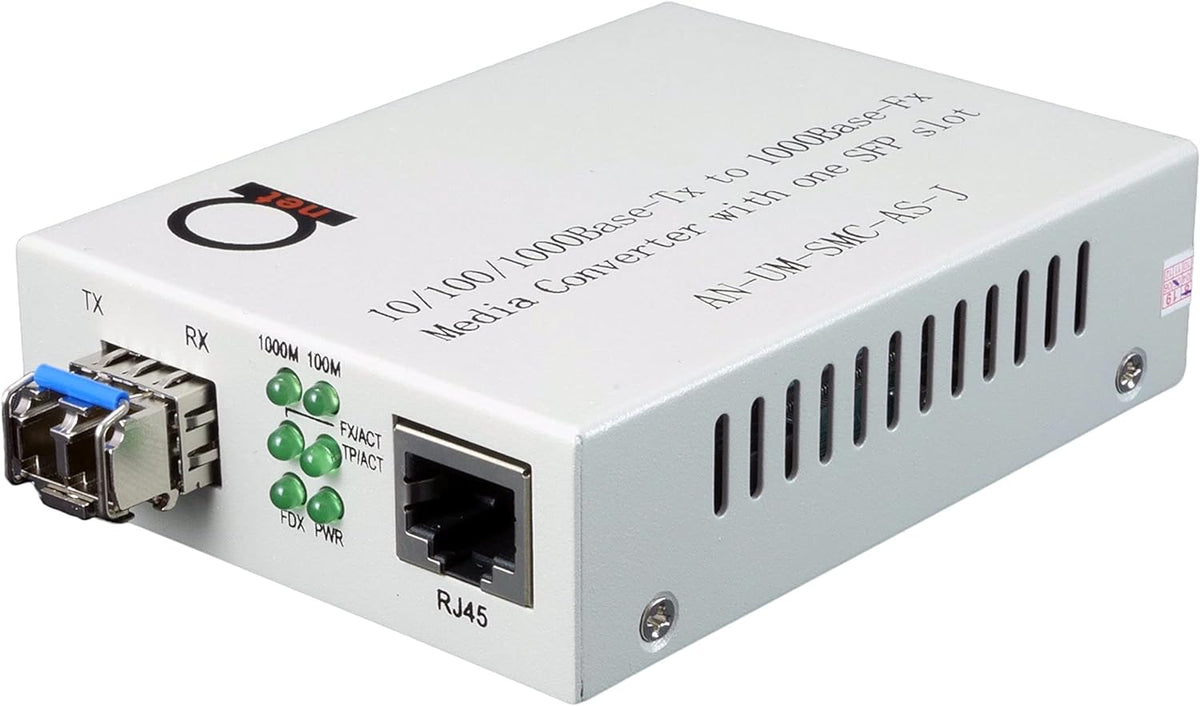

Gigabit Fiber Media Converter with LC SFP X106
Sale price
$14.90
Regular price $58.34
Skip to product information
AUTOMATICALLY adapts to 10 Mbit/s, 100 Mbit/s (Fast Ethernet) or 1000 Mbit/s (Gigabit) Speed And Extends it over Single Mode Fiber to up to 20 km – 12.42 miles - (Transmission Wavelength -– 1310 nm), Ethernet to Fiber applications now are easy;

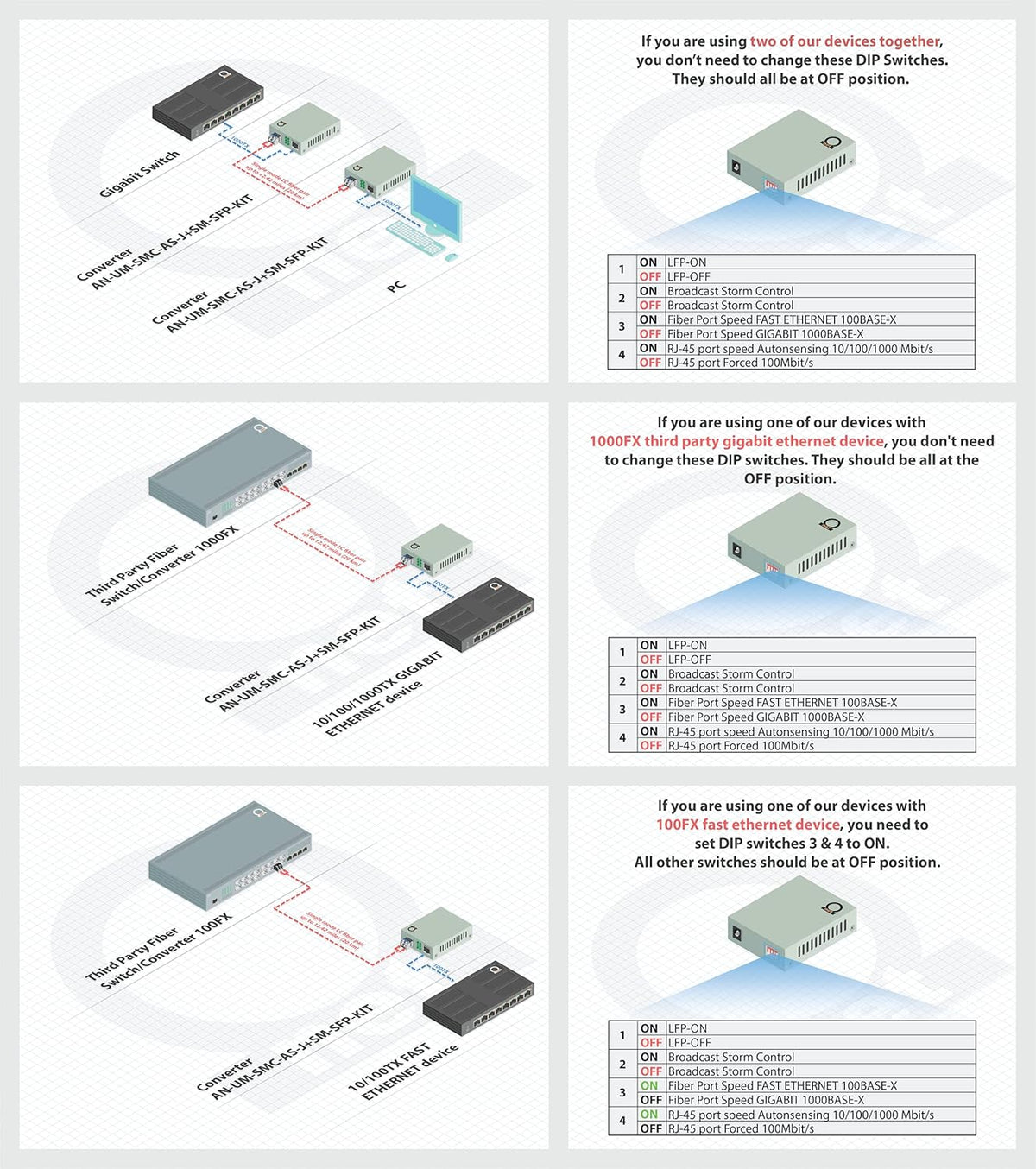

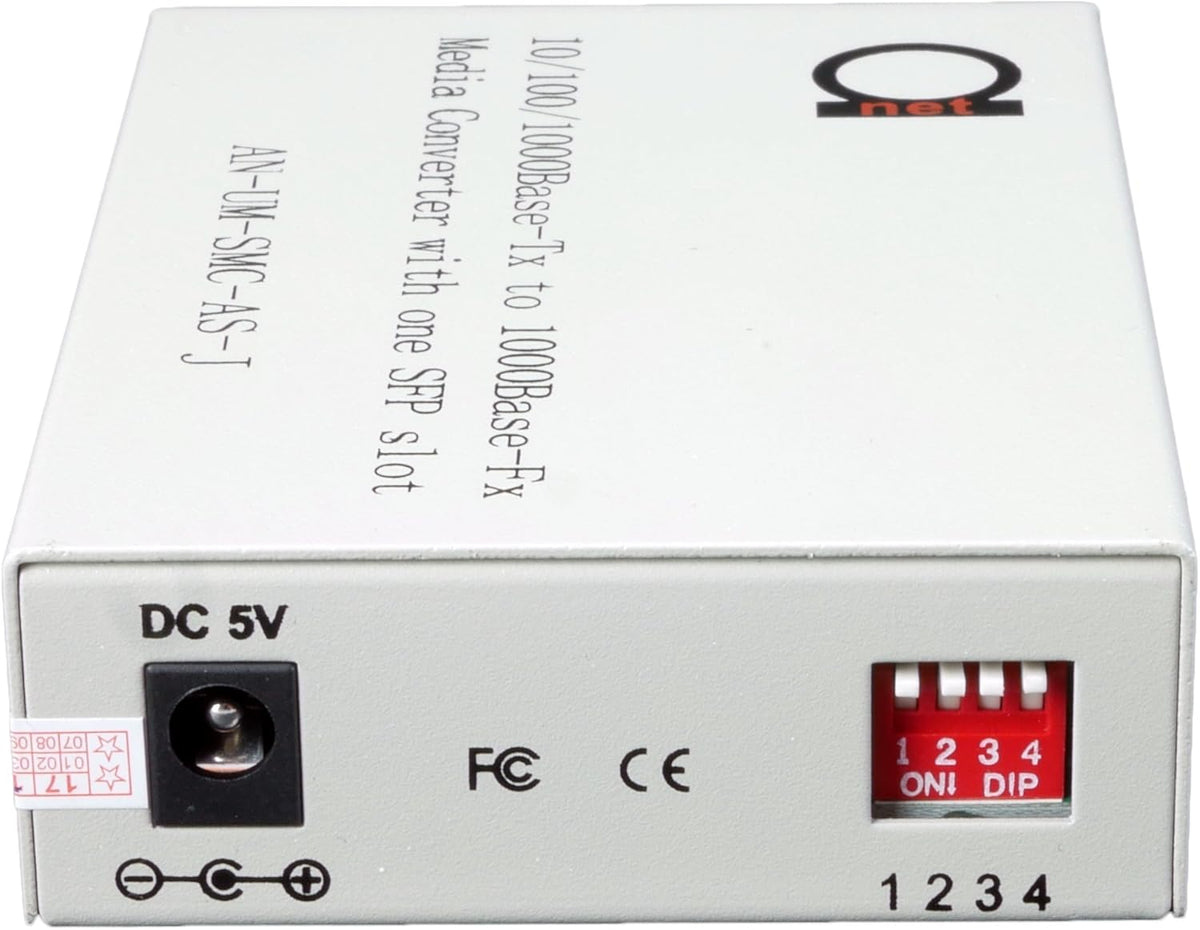

Supports Dual Speed Fiber Mode (configurable by dip switch) – Select 1000Base-LX (default setting) or 100Base-LX – interconnecting with existing fiber nodes is easy with this media converter. Wavelength – 1310nm, Use it with Single Mode Fiber Only.
SUPPORTS Jumbo Frame & LLF feature - for increased end-to-end TCP performance for media converter fiber unit and end point smooth interconnection;

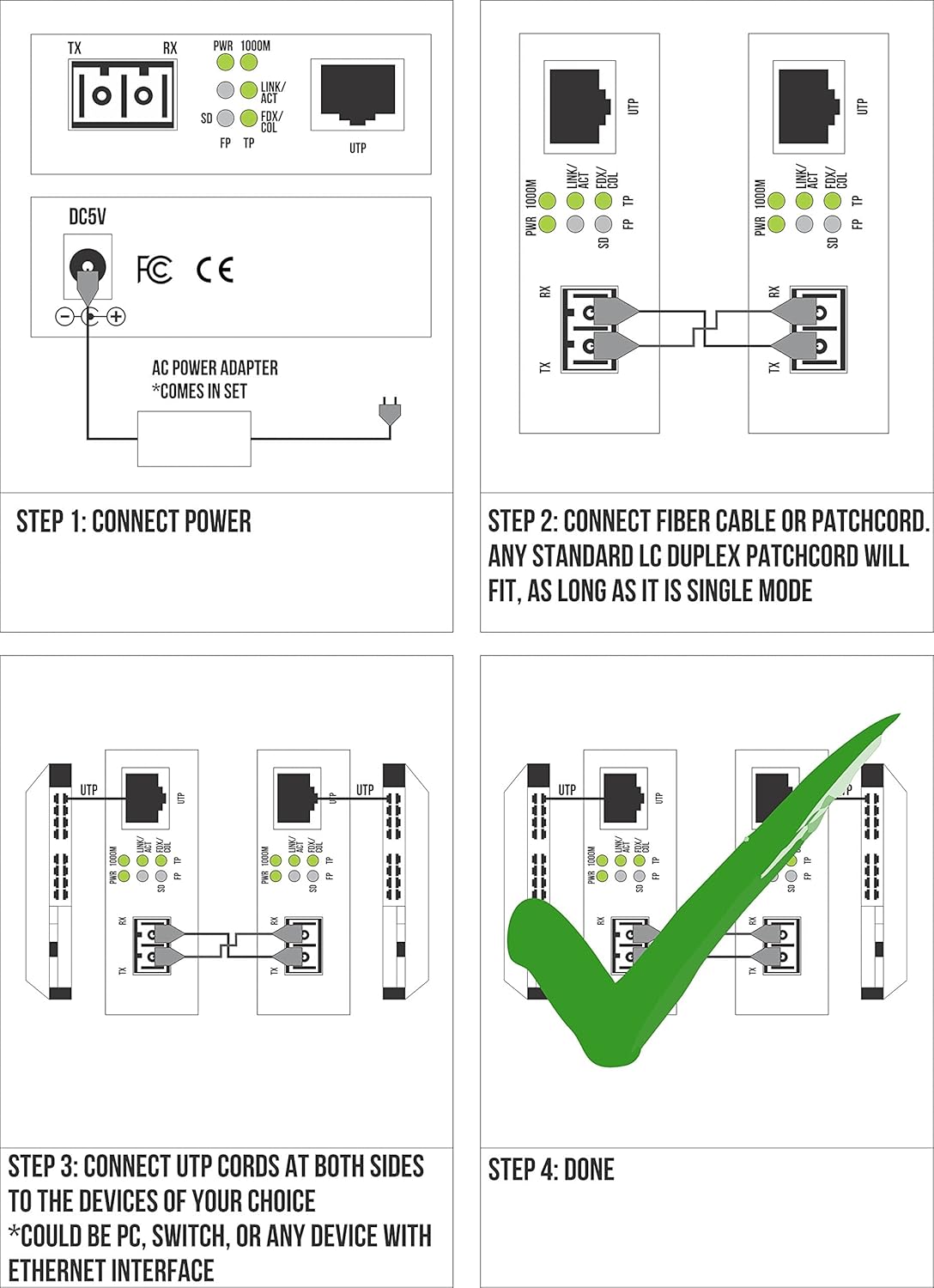

PLUG & PLAY Fiber Media Converters - Simply plug in an optical LC port and UTP RJ-45 port, and it will work immediately;

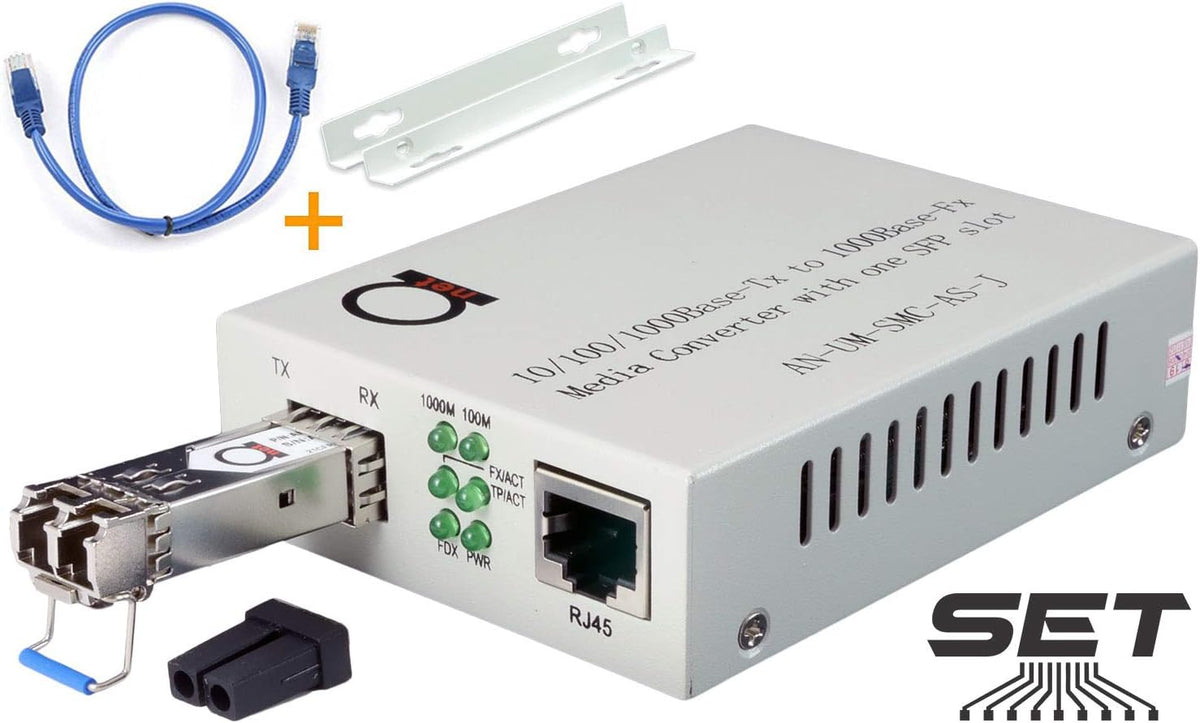

FREE UTP Cat5e Patch Cable (1m - 39in) Comes In The Set With Every Unit! - Colors May Vary Depending on Stock;
Electronics Computers & Accessories Networking Products
Gigabit Fiber Media Converter with LC SFP X106
Sale price
$14.90
Regular price $58.34
Shipping calculated at checkout.
AUTOMATICALLY adapts to 10 Mbit/s, 100 Mbit/s (Fast Ethernet) or 1000 Mbit/s (Gigabit) Speed And Extends it over Single Mode Fiber to up to 20 km – 12.42 miles - (Transmission Wavelength -– 1310 nm), Ethernet to Fiber applications now are easy;
Supports Dual Speed Fiber Mode (configurable by dip switch) – Select 1000Base-LX (default setting) or 100Base-LX – interconnecting with existing fiber nodes is easy with this media converter. Wavelength – 1310nm, Use it with Single Mode Fiber Only.
SUPPORTS Jumbo Frame & LLF feature - for increased end-to-end TCP performance for media converter fiber unit and end point smooth interconnection;
PLUG & PLAY Fiber Media Converters - Simply plug in an optical LC port and UTP RJ-45 port, and it will work immediately;
FREE UTP Cat5e Patch Cable (1m - 39in) Comes In The Set With Every Unit! - Colors May Vary Depending on Stock;
| LC Single Mode Gigabit 20km (12.24 mi) Built-In Fiber Module Media Converter | SC Single Mode Gigabit 20km (12.24 mi) Built-In Fiber Module Media Converter | Dual AC+DC LC Single Mode Gigabit 20km (12.24 mi) BuiltIn Module Media Converter | Single Mode LC WDM Bi-Di Single Fiber Gigabit Built-In Fiber Module Converter | PoE Single Mode LC 1310nm 20km (12.42mi) Power Over Ethernet Fiber Converter | Din Rail Industrial Mini Type Single Mode Single Fiber WDM SC Media Converters | |
|---|---|---|---|---|---|---|
| Speed | Gigabit | Gigabit | Gigabit | Gigabit | Gigabit | Universal: Gigabit / Fast Ethernet |
| Autosensing to 10 / 100 / 1000 Mbit/s | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Fiber Type | Single Mode | Single Mode | Single Mode | Single Mode (1 fiber - Single Strand) | Single Mode | Single Mode (1 fiber - Single Strand) |
| Fiber Connector | LC | SC | LC | LC | LC | SC |
| Wavelength | 1310nm | 1310nm | 1310nm | 1310/1550 nm A-side | 1550/1310nm B-side | 1310nm | 1310/1550 nm A-side | 1550/1310nm B-side |
| Power Supply | AC adapter in set | AC adapter in set | AC + DC dual power input | AC adapter in set | AC adapter in set | 9 - 55 VDC (AC adapter in set) |
| Maximum Reach | 12.24 miles (20 km) | 12.24 miles (20 km) | 12.24 miles (20 km) | 12.24 miles (20 km) | 12.24 miles (20 km) | 12.24 miles (20 km) |
| Size | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 30mm (H) * 110mm (D) * 140 mm (W) / 1.18 in (H) * 4.33 in (D) * 5.51 in (W) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 70.5mm - 2.77in - (L) X 94mm – 3.7in (W) X 26.5mm – 1.04in (H) | 60* 50* 35 mm (2.36* 1.96* 1.37in) (L*W*H) |
| DIN rail support | ✓ | |||||
| PoE/PoE+ PSE Output | ✓ |
